AutoCAD मे Line Draft करने का दूसरा Method Relative Co-ordinate है, जिसकी सहायता से हम लाइन बना सकते है! इस Method मे Line Command का उपयोग करकें लाइन Create करते है, इस Method को Use करने के लिए Shortcut key "L" Press करकें Enter करते है!
Relative Coordinate Method का उपयोग Drawing Create करते समय उतना ज्यादा उपयोग मे नहीं लाया जाता फिर भी यह Method AutoCAD बहुत ही महत्वपूर्ण है, इसलिए Method के बारे मे जानना बहुत जरुरी होता है!
2. RELATIVE CO-ORDINATE METHOD:-
Relative Coordinate Method से Line बनाने के लिए एक End Point के Respect मे दूसरे End Point का Co-ordinate value लिया जाता है!
Relative Co-ordinate Method मे एक End Point को Origine मानकर दूसरे End Point का Value लिया जाता है
X Axis Respect :-
Point -A Origine -(0,0) -Click the First
Point -B Origine -(@10,0) value Press the Enter
Below show the Drawing:-

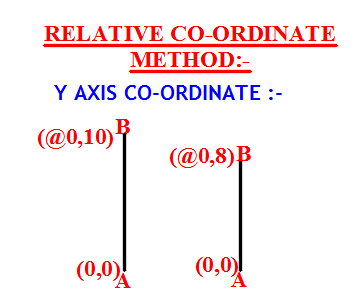

Y-Axis Respect :-
Point -A Origine -(0,0) -Click the First
Point -B Origine -(@0,10) value Press the Enter
Below show the Drawing:-
